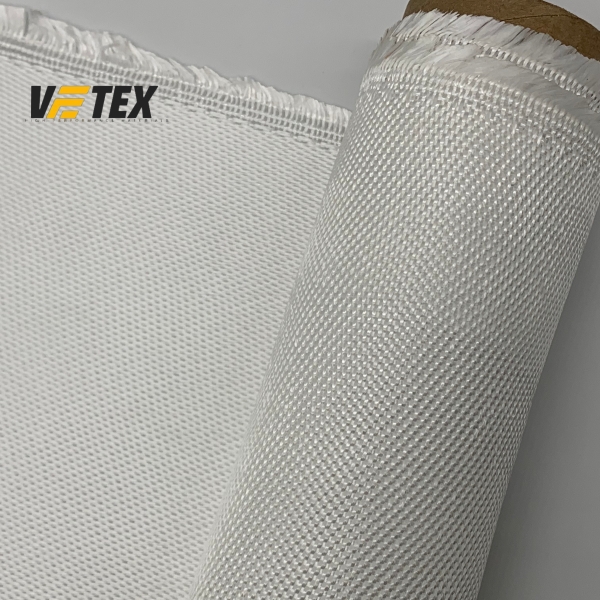

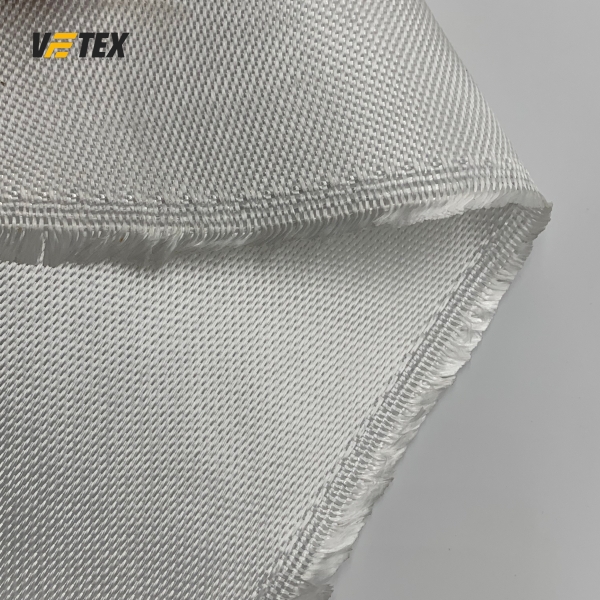

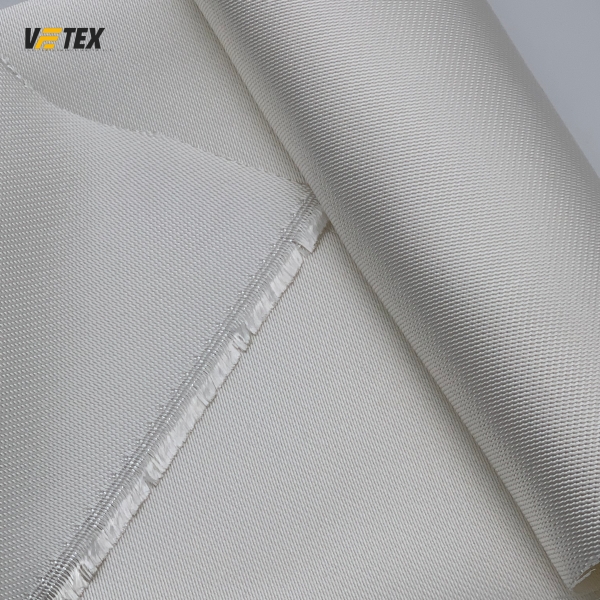

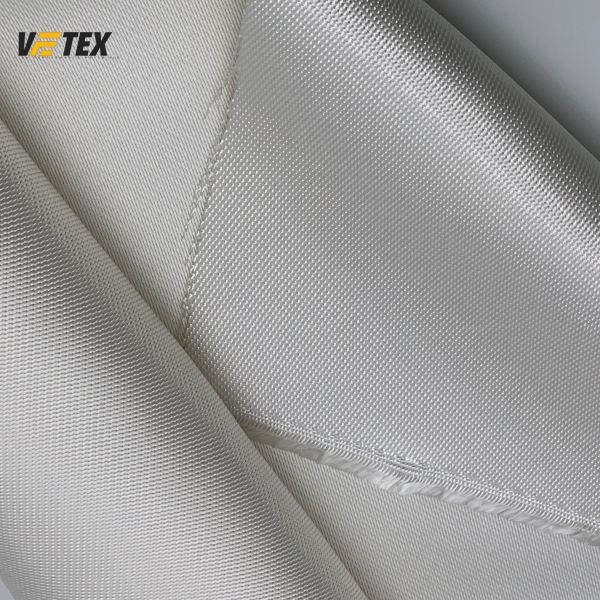

High Silica Fiberglass Fabric
High Silica Fabric
Grade-specific textiles for demanding thermal exposure.
Specifications
- SiO2 content
- > 96%
- Long-term temperature
- 1000°C
- Grade families
- HS-300 / 600 / 880 / 1100 / 1200
- Composition
- Asbestos-free high-silica fabric
Key Benefits
✔ Extreme Heat Resistance
Continuous working temperature up to 1000°C, excellent thermal stability
✔ Safe & Eco-Friendly
100% asbestos-free & ceramic fiber-free, non-toxic and skin-friendly
✔ Superior Thermal Insulation
Low thermal conductivity reduces heat loss effectively
✔ High Mechanical Strength
Excellent tensile strength ensures long service life
✔ Outstanding Electrical Insulation
Ideal for power and cable protection applications
✔ Strong Chemical Resistance
Inert to most chemicals, suitable for harsh environments
Technical Specifications
Model | Weave | Weight (g/m²) | Width (cm) | Thickness (mm) | Warp Density (/cm) | Weft Density (/cm) | Warp Strength | Weft Strength |
|---|---|---|---|---|---|---|---|---|
HS-300 | Twill 3×1 | 300±30 | 92 / 120 | 0.3±0.1 | 18.5±2 | 12.5±1 | ＞400 | ＞250 |
HS-600 | Satin 8HS | 610±30 | 92 / 100 / 130 | 0.7±0.1 | 18±2 | 13±1 | ＞800 | ＞600 |
HS-880 | Satin 12HS | 880±40 | 92 / 100 | 1.0±0.1 | 18.5±2 | 13±1 | ＞1000 | ＞750 |
HS-1100 | Satin 12HS | 1100±50 | 92 / 100 / 130 | 1.25±0.1 | 18.5±1 | 13±1 | ＞1200 | ＞1000 |
HS-1200 | Satin 12HS | 1220±50 | 92 | 1.35±0.1 | 18.5±1 | 13±1 | ＞1250 | ＞1000 |
HS-1300 | Satin 12HS | 1350±50 | 100 | 1.5±0.1 | 18.5±1 | 13±1 | ＞1400 |
🏭 Typical Applications
Aerospace
Thermal ablation materials, heat shields
Energy & Power Plants
Nuclear equipment insulation, cable fire protection
Industrial Equipment
Turbine insulation, engine exhaust systems
Pipelines & Valves
Steam pipes, flanges, expansion joints, insulation
Shipbuilding & Heavy Industry
High-temperature protection for machinery
📦 Packaging & Certification
📦 Packaging
Carton packaging, custom logo printing available
📜 Certification
✔ SGS Certified
✔ Third-party test reports available on request
🧪 Quality Assurance
- Strict raw material selection
- Full-process quality control
- Stable batch consistency
- Custom testing support
🤝 Why Choose Jiangsu Vetex?
✔ Professional manufacturer of high-temperature materials
✔ Stable supply & fast delivery
✔ OEM / ODM supported
✔ Fast sampling (3–5 days)
✔ Technical support for your application
